Engineering data of wood pellet boiler houses

  • Module units up to 2.0 MW.
  • Higher capacity of the unit can be achieved by merging similar modules into one joint system.
  • Fully automated solutions, efficiency factor 85–90 %.
  • Boilers and heat exchangers – by leading suppliers.
  • The delivery includes fully automated conveyors of fuel infeed, as well as silos for fuel storage.
  • Internet connected control center. No need in continuous operator attendance, since all the operating parameters, including fuel supply, can be controlled on-line.

Each boiler house is transported in the
form of transportation modules pre-
assembled at Hekotek workshop, which
significantly reduces installation time
on-site.

Read more

Examples of implemented projects

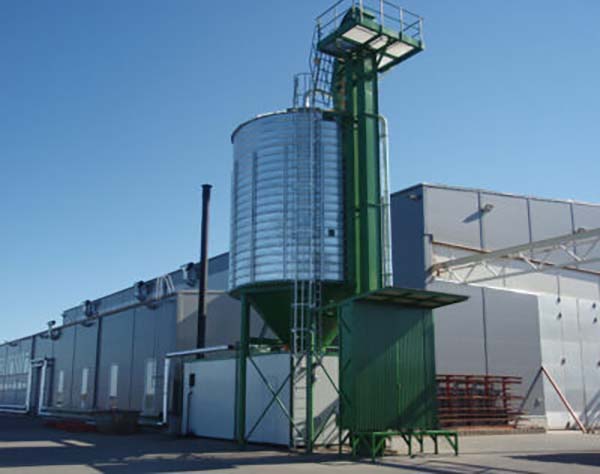

Hekotek own workshop

First Hekotek project implemented in the field of wood pellet boiler houses manufacture. In operation since 2010 . Capacity 0.8 MW.

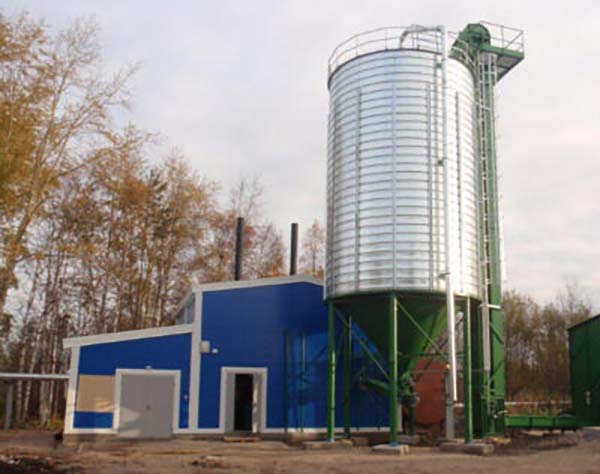

Sawmill 25

Since 2010 within the framework of the project in Arkhangelsk region Hekotek has supplied and launched 5 wood pellet boiler houses, total capacity 15 MW.

View on the map

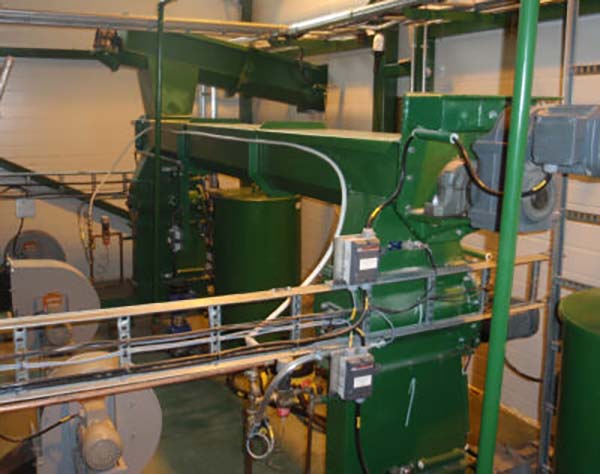

Stroyenergoizolyatsiya

Wood pellet-burning boiler house in Arkhangelsk region. 2 boilers 0.5 MW each are in operation since 2014.
